MB-77HS

SLIDE & LIFT AND SLIDE SYSTEMS

MB-77HS

The MB-77HS Lift & Slide door system is designed to accommodate impressive large openings. It supports double and even triple glass unit compositions, offering excellent thermal and acoustic performance.

Available in two variants (regarding the level of thermal performance)—standard “ST” and highly insulated “HI”—to suit different energy efficiency needs.

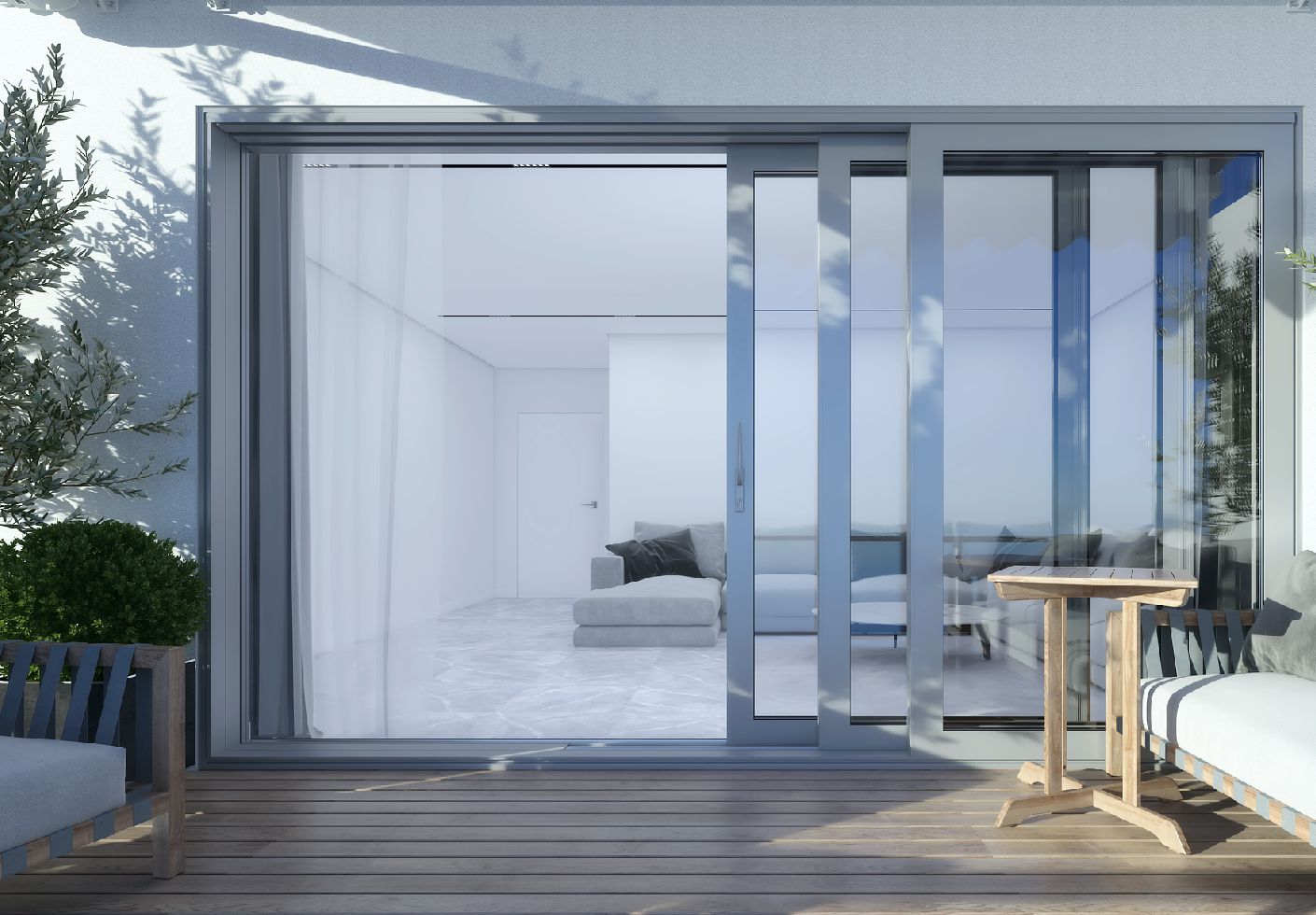

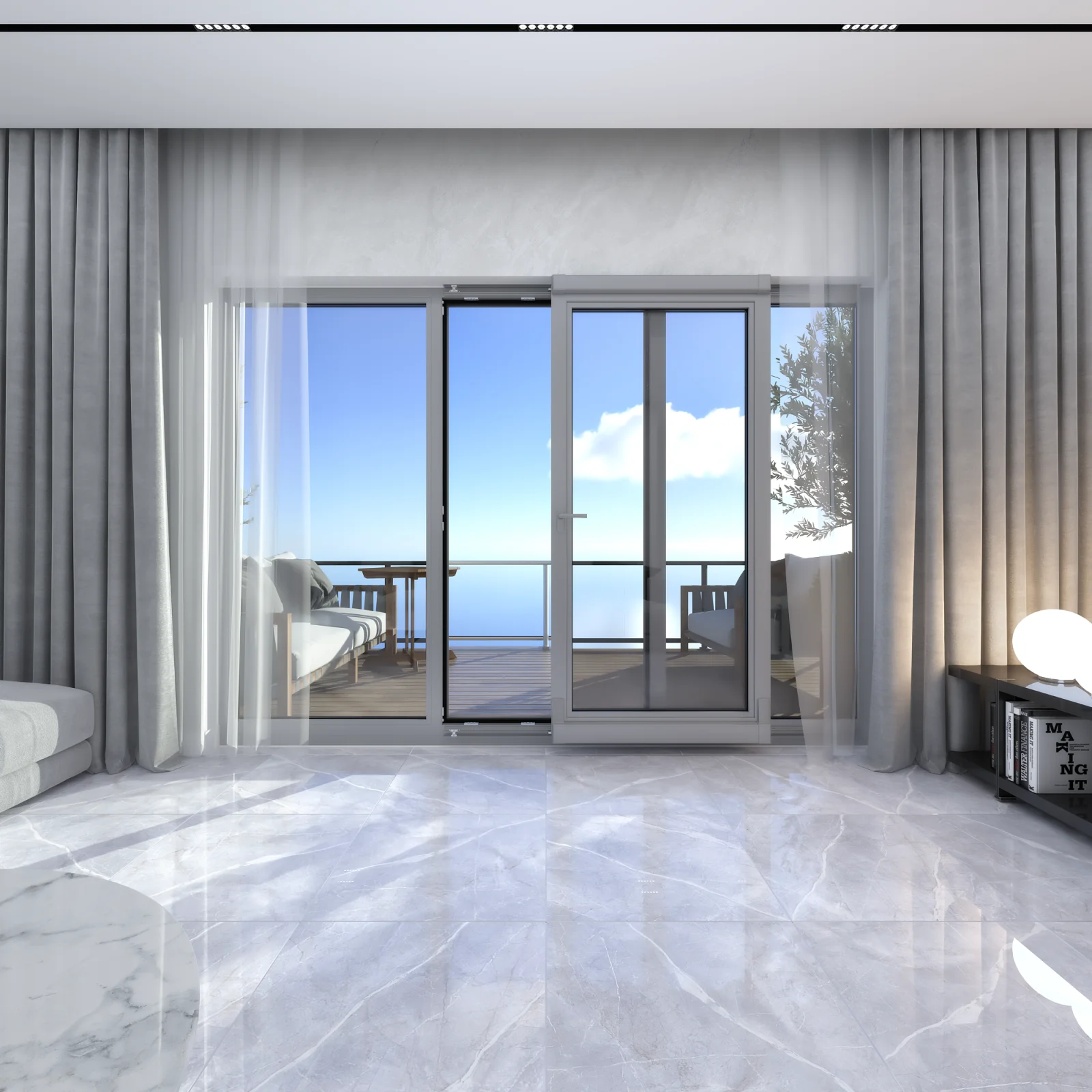

MB-77HS lift & slide door — patio view

Thanks to its advanced system properties and rigorous performance tested through a stringent regime, the MB-77HS Lift & Slide system is perfectly suited for a wide range of domestic and retail applications. It provides a comfortable, safe, and cost-effective solution that requires minimal maintenance, ensuring long-term durability and satisfaction for the end user.

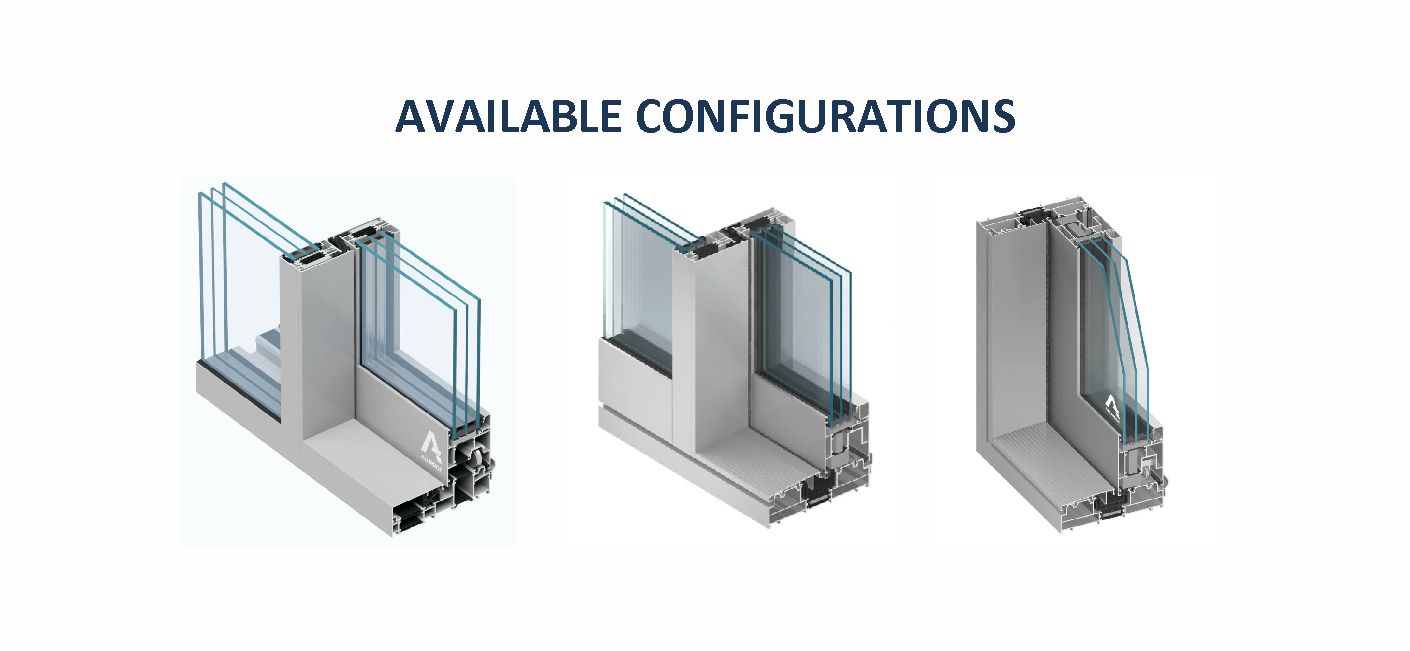

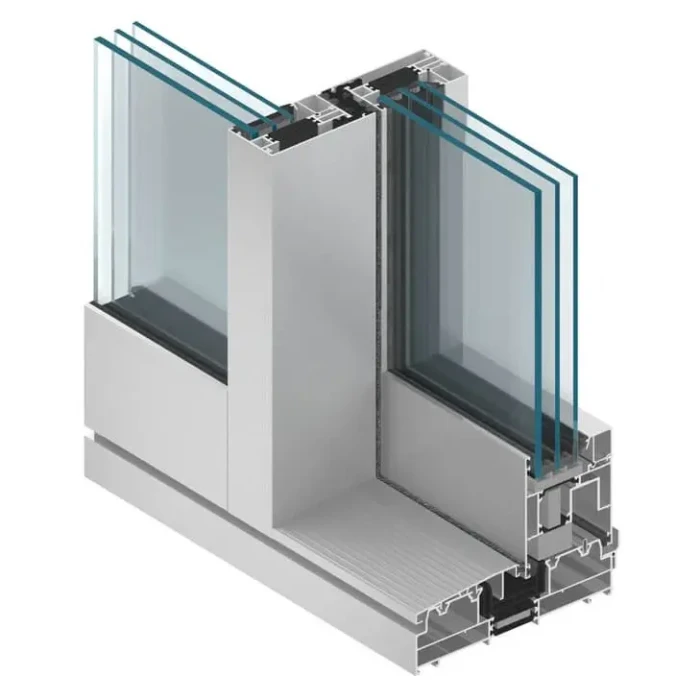

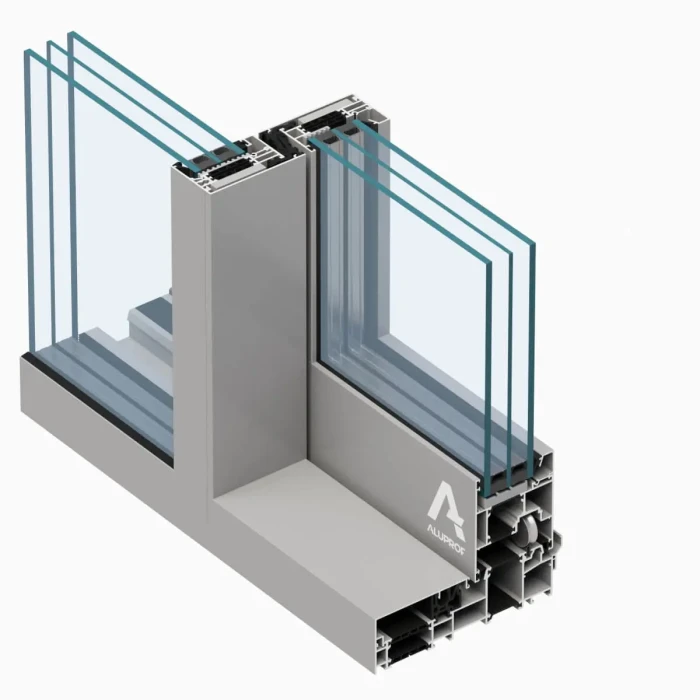

AVAILABLE CONFIGURATIONS

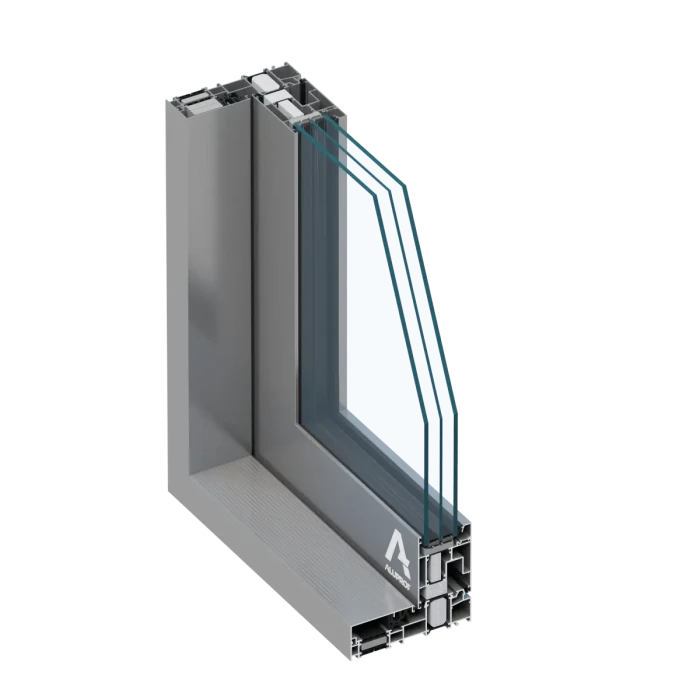

MB-77HS configuration
MB-77HS configuration
MB-77HS configuration

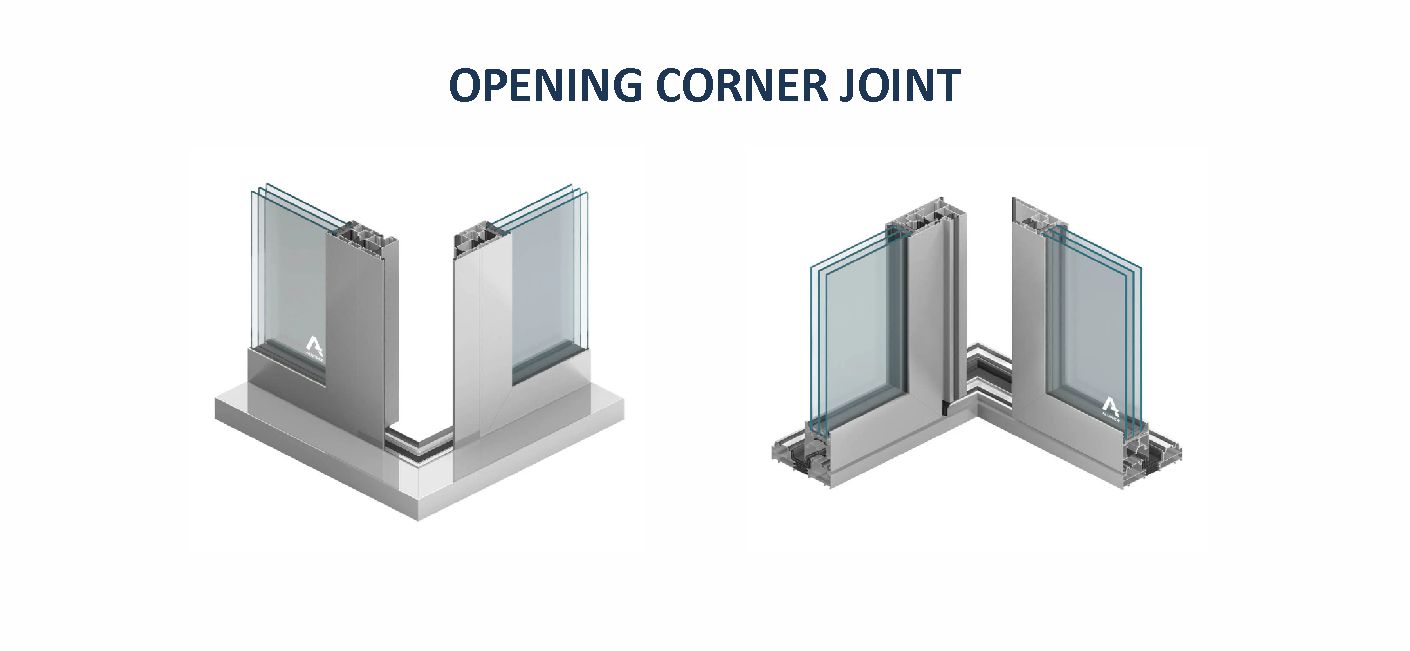

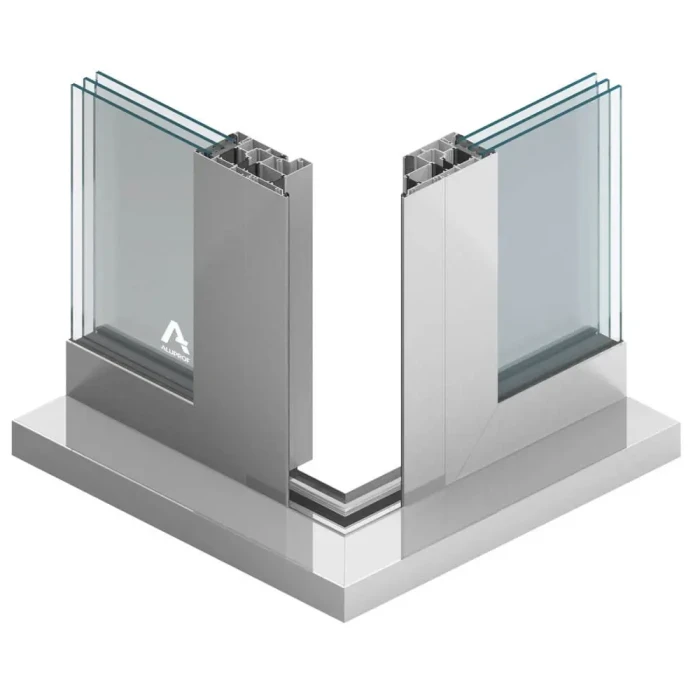

OPENING CORNER JOINT

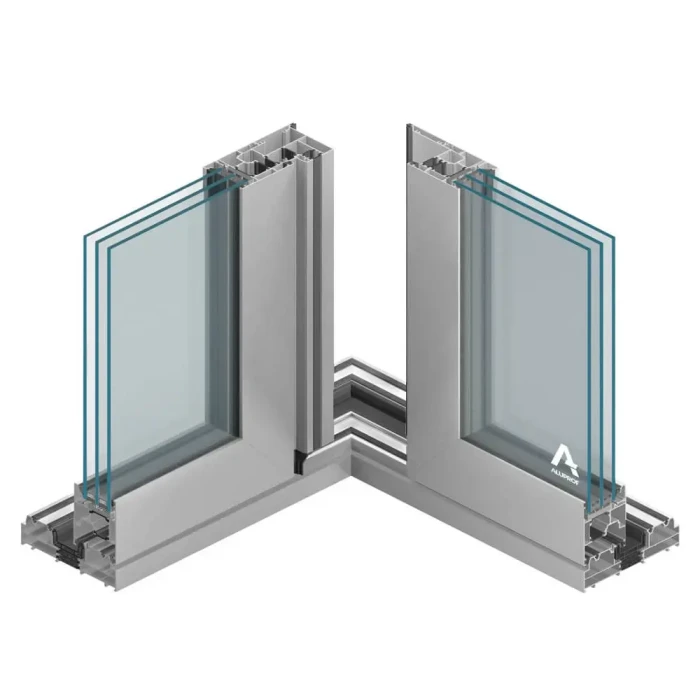

MB-77HS opening corner joint
MB-77HS opening corner joint

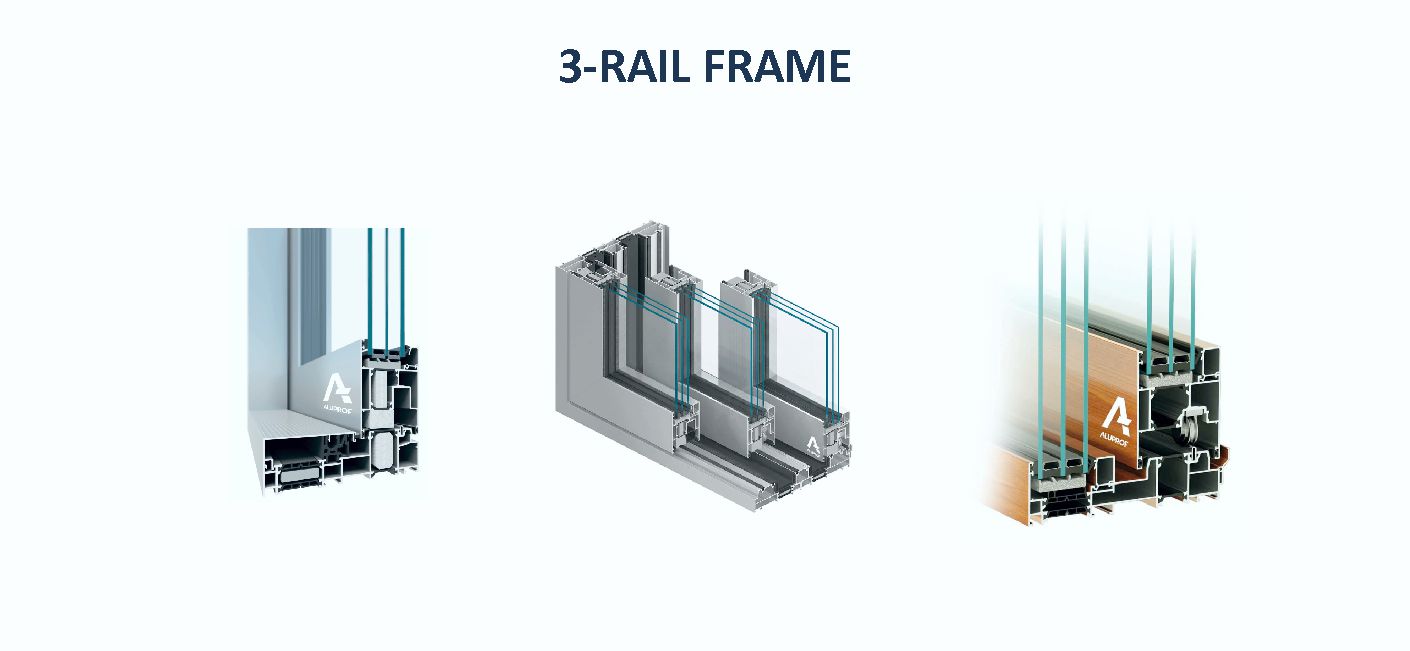

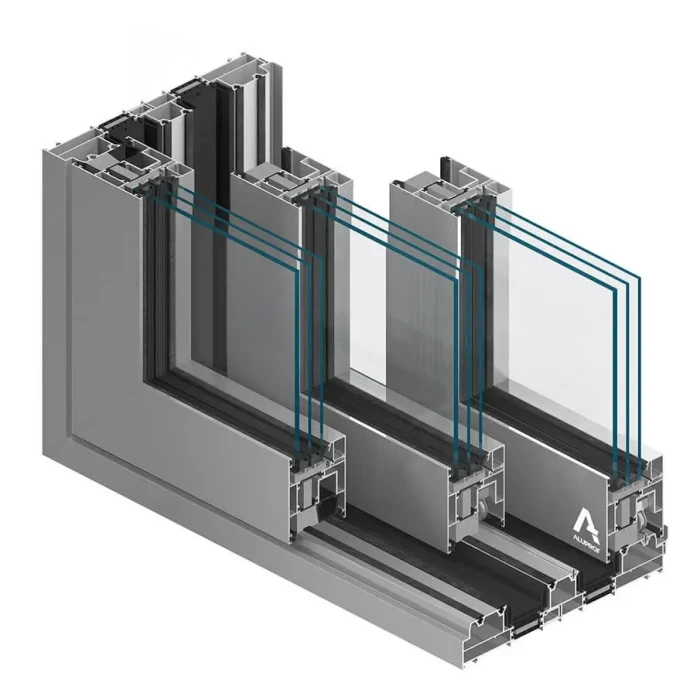

3-RAIL FRAME

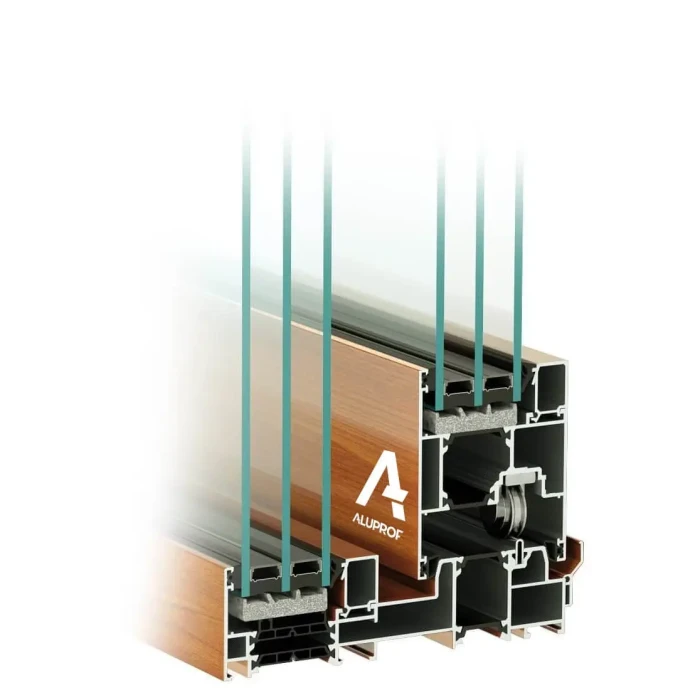

MB-77HS 3-rail frame
MB-77HS 3-rail frame

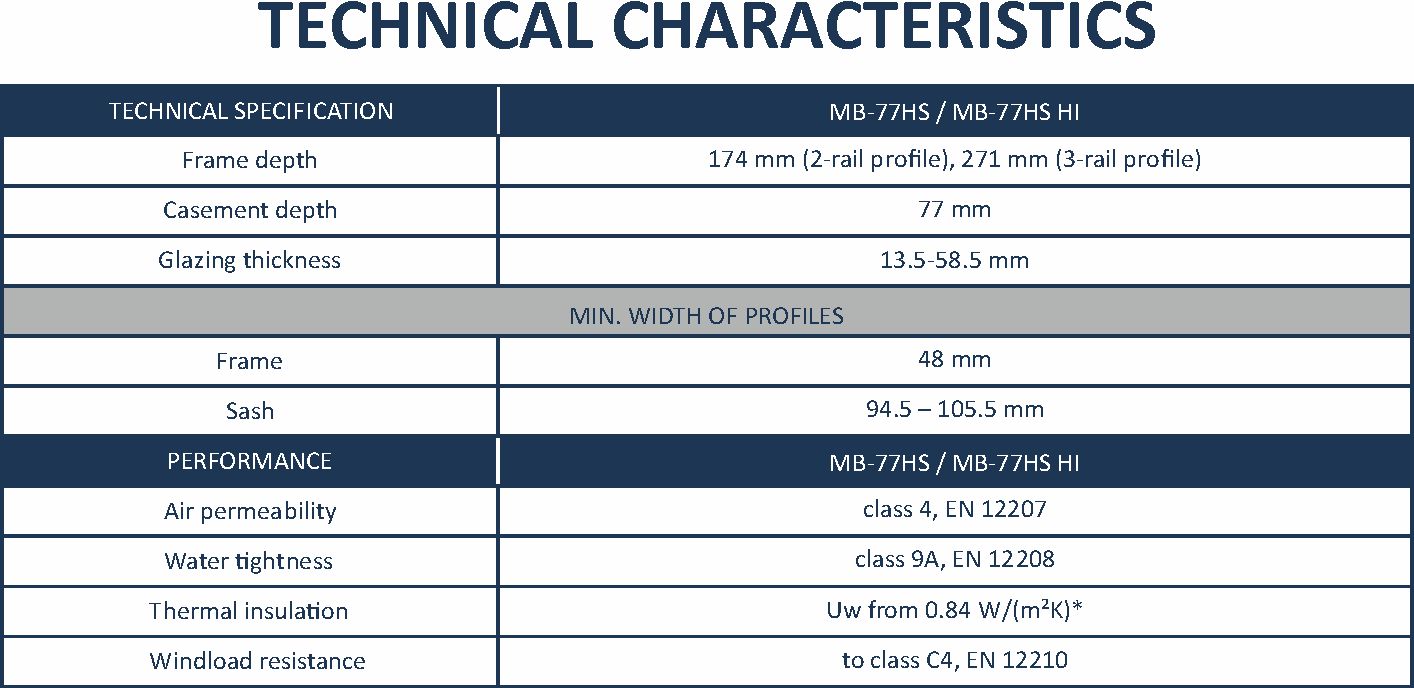

TECHNICAL CHARACTERISTICS
