ALT SL130
PATIO AND FOLDING SYSTEMS
ALT SL 130

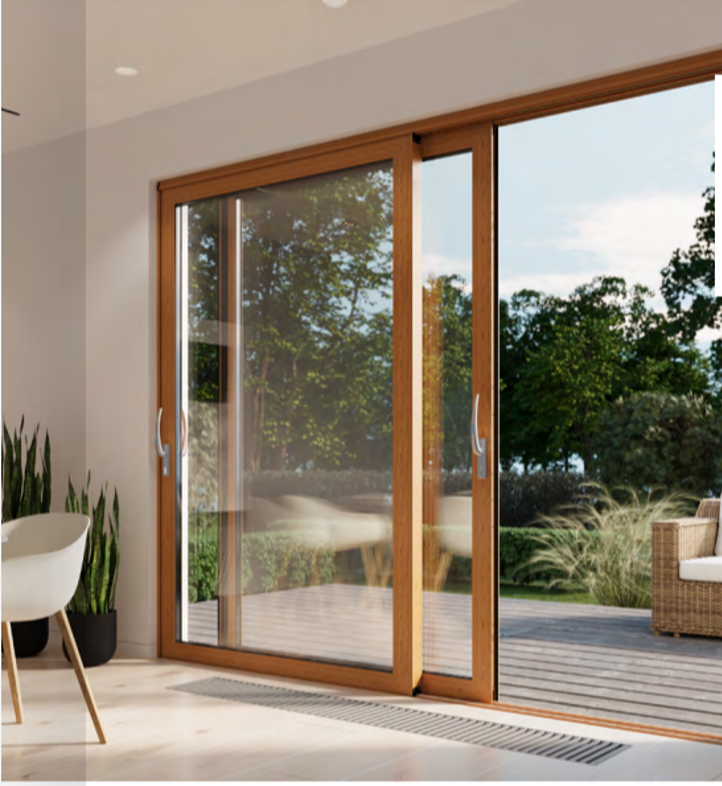

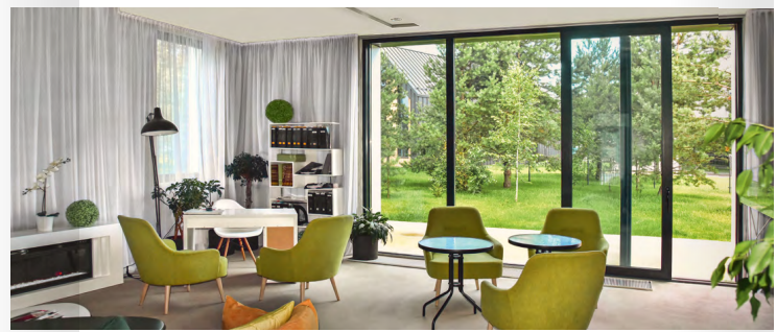

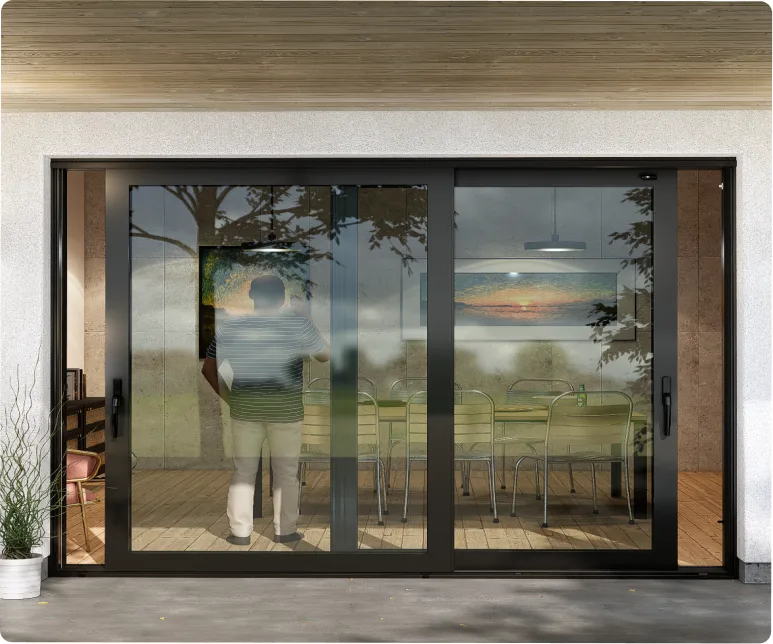

The ALT SL130 Slimline Patio System offers a stylish and functional solution for both private and commercial spaces. This system will enhance the premises with natural light, providing an excellent view of the surrounding landscapes, and offering expansive transparent surfaces. The option for automatic control adds an extra level of convenience, making daily door operations even more comfortable.

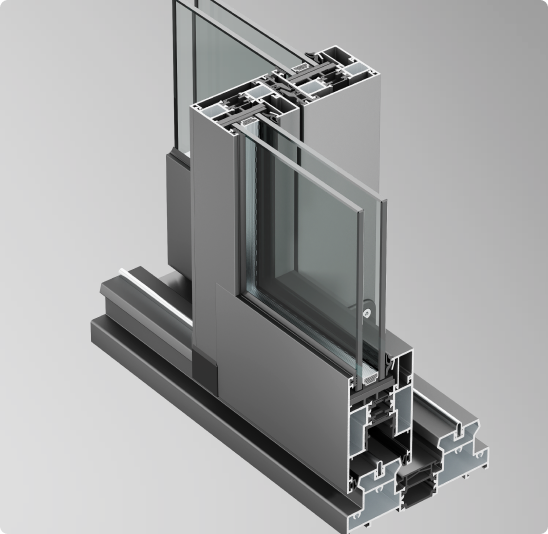

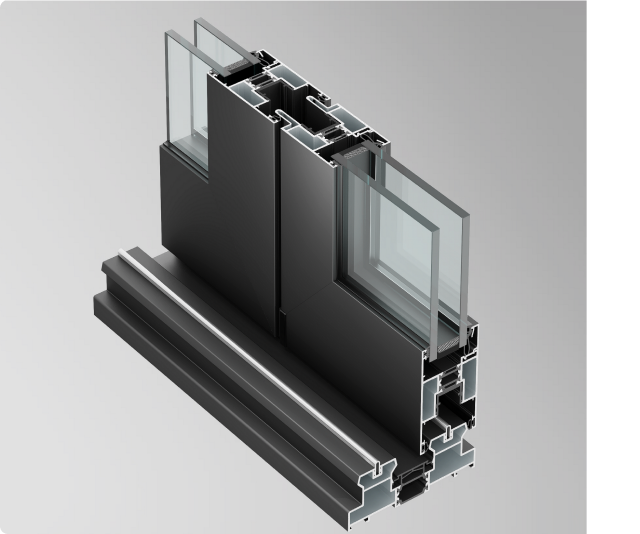

Modifications and
system options

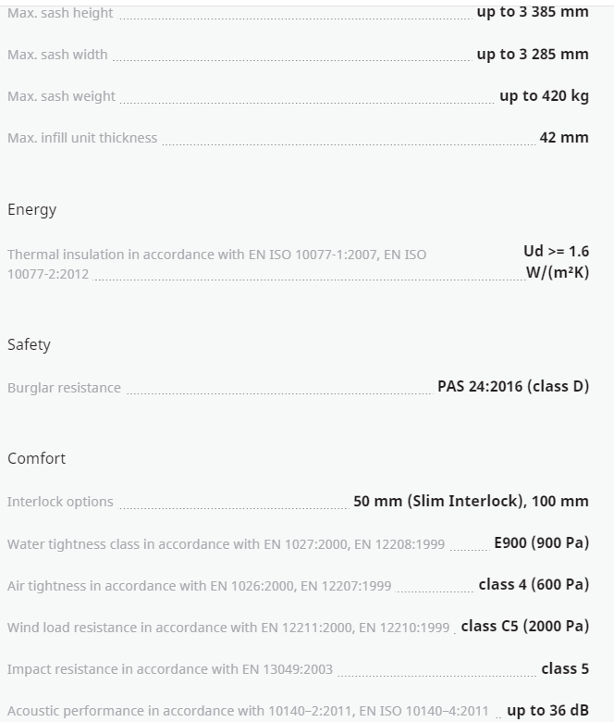

TECHNICAL CHARACTERISTICS
Profile Dimensions
Max sash heightup to 3385 mm
Max sash widthup to 3285 mm
Max sash weightup to 420 kg
Glass Specifications
Max infill unit thickness42 mm
Energy Efficiency
Thermal insulation (EN ISO 10077-1:2007, EN ISO 10077-2:2012)Ud ≥ 1.6 W/(m2·K)
Comfort & Durability
Water tightness (EN 1027:2000, EN 12208:1999)E900 (900 Pa)
Air tightness (EN 1026:2000, EN 12207:1999)class 4 (600 Pa)
Wind load resistance (EN 12211:2000, EN 12210:1999)class C5 (2000 Pa)
Acoustic performance (EN ISO 10140-2:2011, EN ISO 10140-4:2011)up to 36 dB
Impact resistance (EN 13049:2003)class 5
Safety
Burglar resistancePAS 24:2016 (class W)
