MB-86 Fold Line HD

KEY FEATURES AND ADVANTAGES OF THE MB-86 FOLD LINE HD SYSTEM:

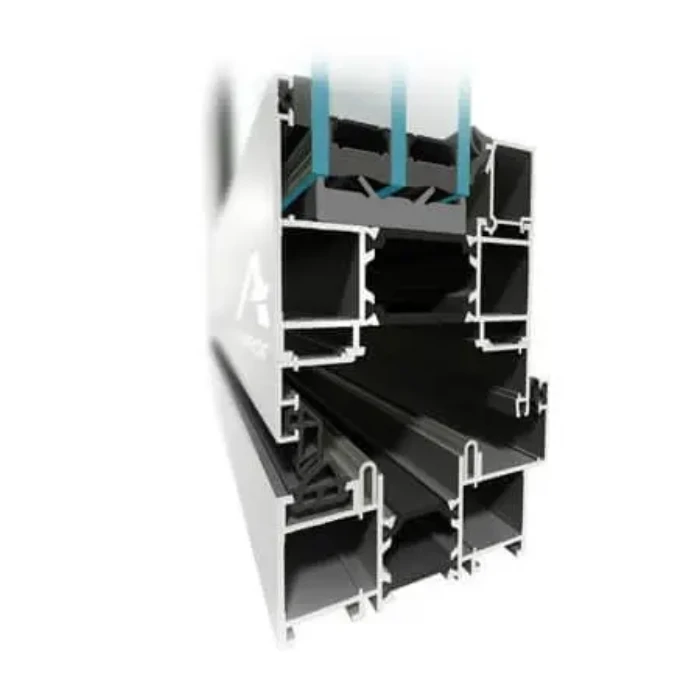

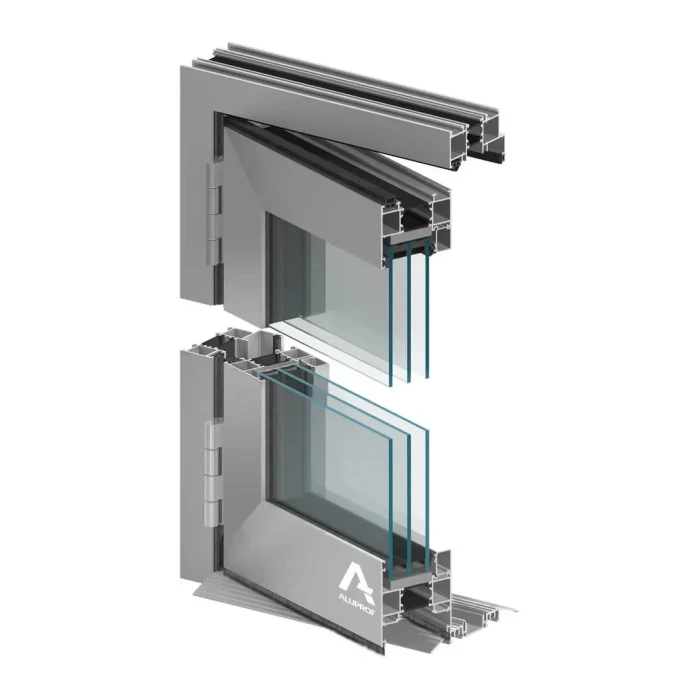

• Durable three-cavity aluminium profiles, with a structural depth of 86 mm for the frame and 77 mm for the panels.

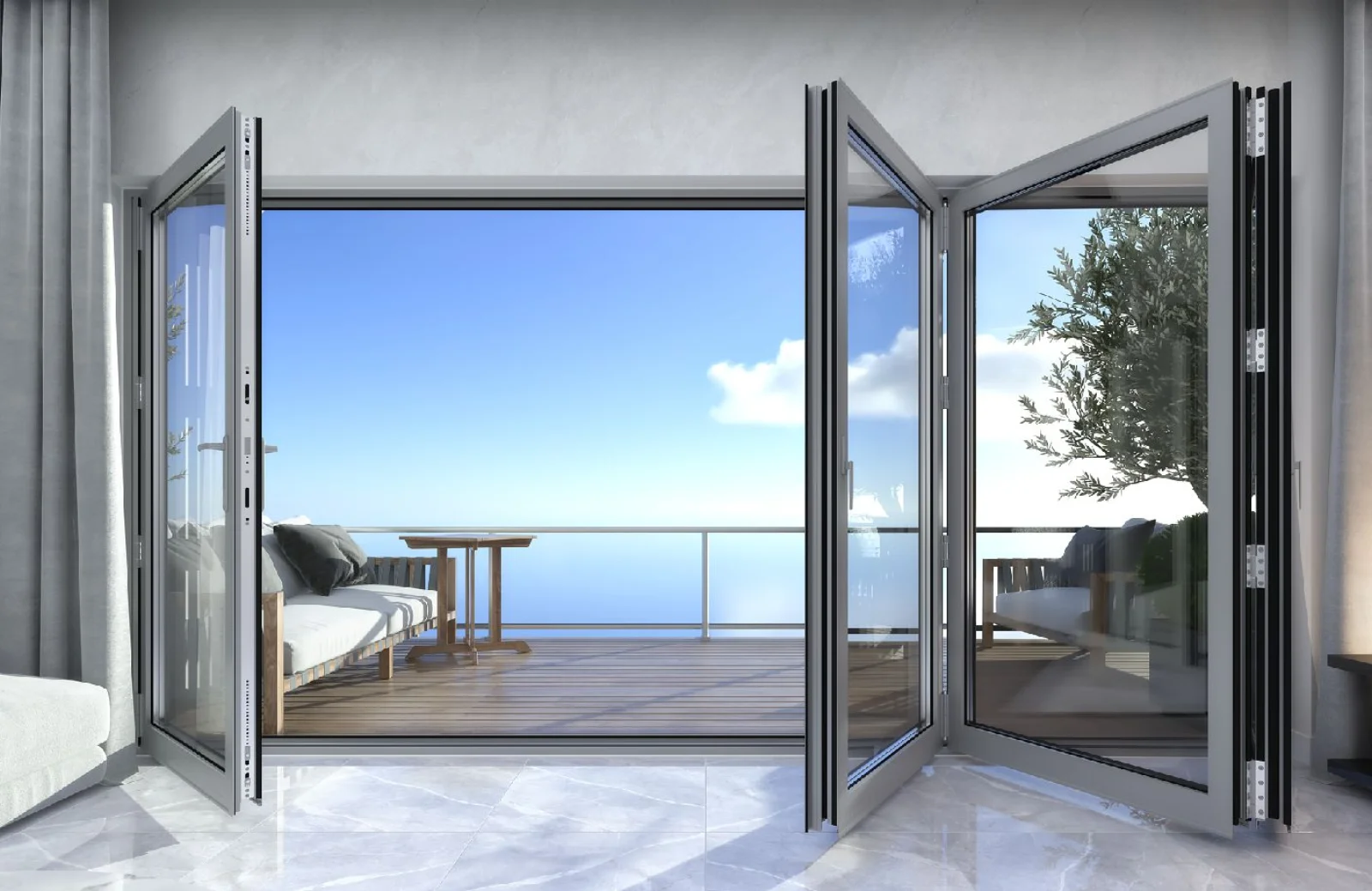

• Available as a corner or panoramic structure and can be assembled with up to eight panels.
• The profiles for the central section are fitted with thermal breaks with a width of 24 mm for the frames and 34 mm for the panels, contributing to the structure’s high thermal performance.
• Custom-designed hardware guarantees that door panels weighing up to 120 kg can be operated with ease.
• Extensive permissible dimensions make it possible to build doors with a maximum panel height of 3000 mm and a width ranging from 700 to 1200 mm.

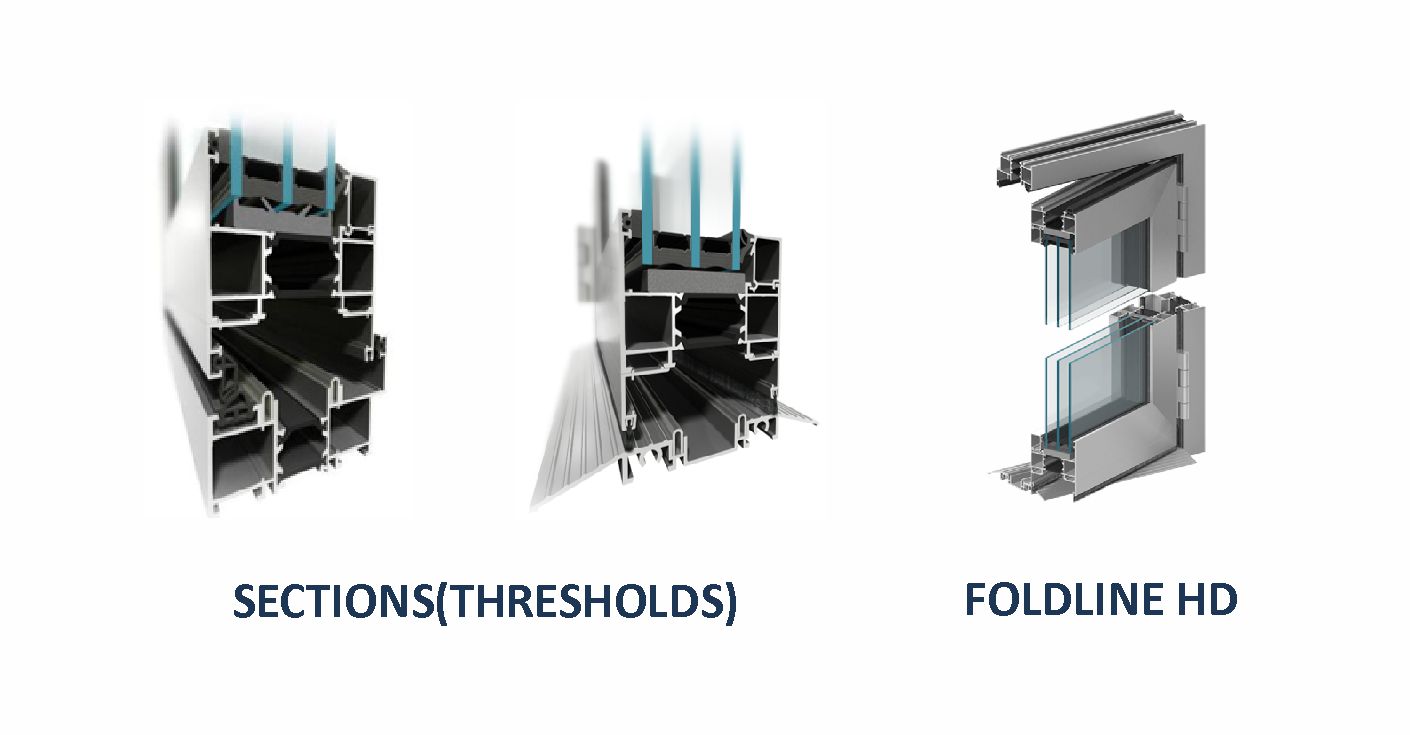

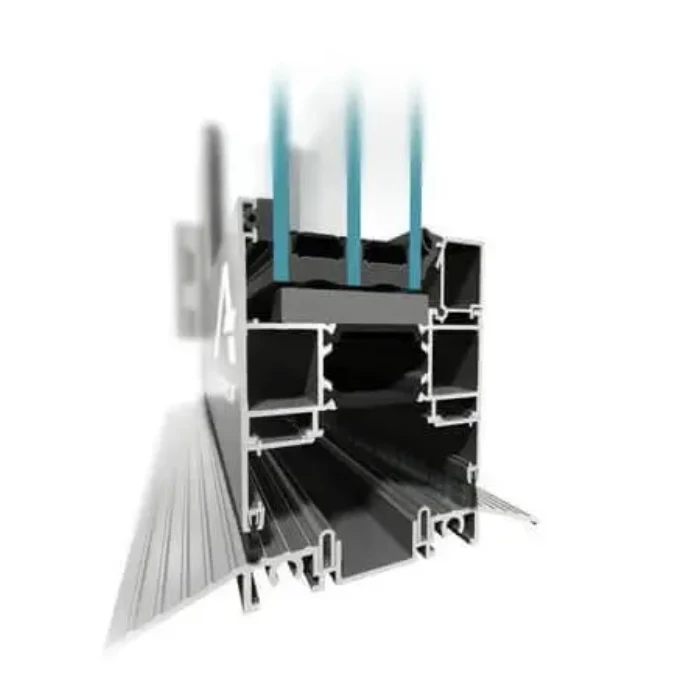

• Features the widest range of threshold solutions, including one which provides a weatherstrip and another which offers a low threshold for even more user comfort.
• Glazing ranges from 13.5 to 61.5 mm, meaning that both double- and triple-glazing units can be used, as can units with increased acoustic insulation and units with a burglary-resistance rating.
• Designed to be compatible with our renowned and highly esteemed MB-86N window and door system. The profile joints are analogous to those for the MB-86N and the two systems share some profiles, gaskets and accessories.
