MB-SR50N
FACADE SYSTEM
MB-SR50N
The MB-SR50N Mullion-Transom System is designed to fabricate lightweight curtain walling, roofs, skylights, and other spatial structures. In line with contemporary architectural trends, this system allows for the alignment of mullion and transom profiles on the inner side of the facade, offering a variety of aesthetic options and the flexibility to create different visual appearances.
The MB-SR50N+ facade system offers a flexible and versatile solution for creating aesthetic and high-performance curtain walls. It provides the following key features:
- Angle Joints: Allow for free shaping of aluminum structures.
- Sharp-edged Posts and Beams: Facilitate the construction of curtain wall supporting structures with a uniform truss appearance.
- Aesthetic Variety: A range of curtain wall variations and lining profiles in different shapes, offering diverse design possibilities.

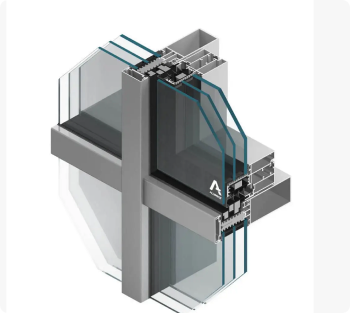

- Opening Elements: A large selection of curtain wall opening options, including windows, doors, skylight windows, and tilt-and-turn or parallel opening MB-SR50N OW systems.
- Glazing Range: A wide range of glazing options, supported by insulators and accessories to achieve high thermal insulation performance.
- Curved Structures: The ability to bend profiles, allowing for the creation of curved structures.

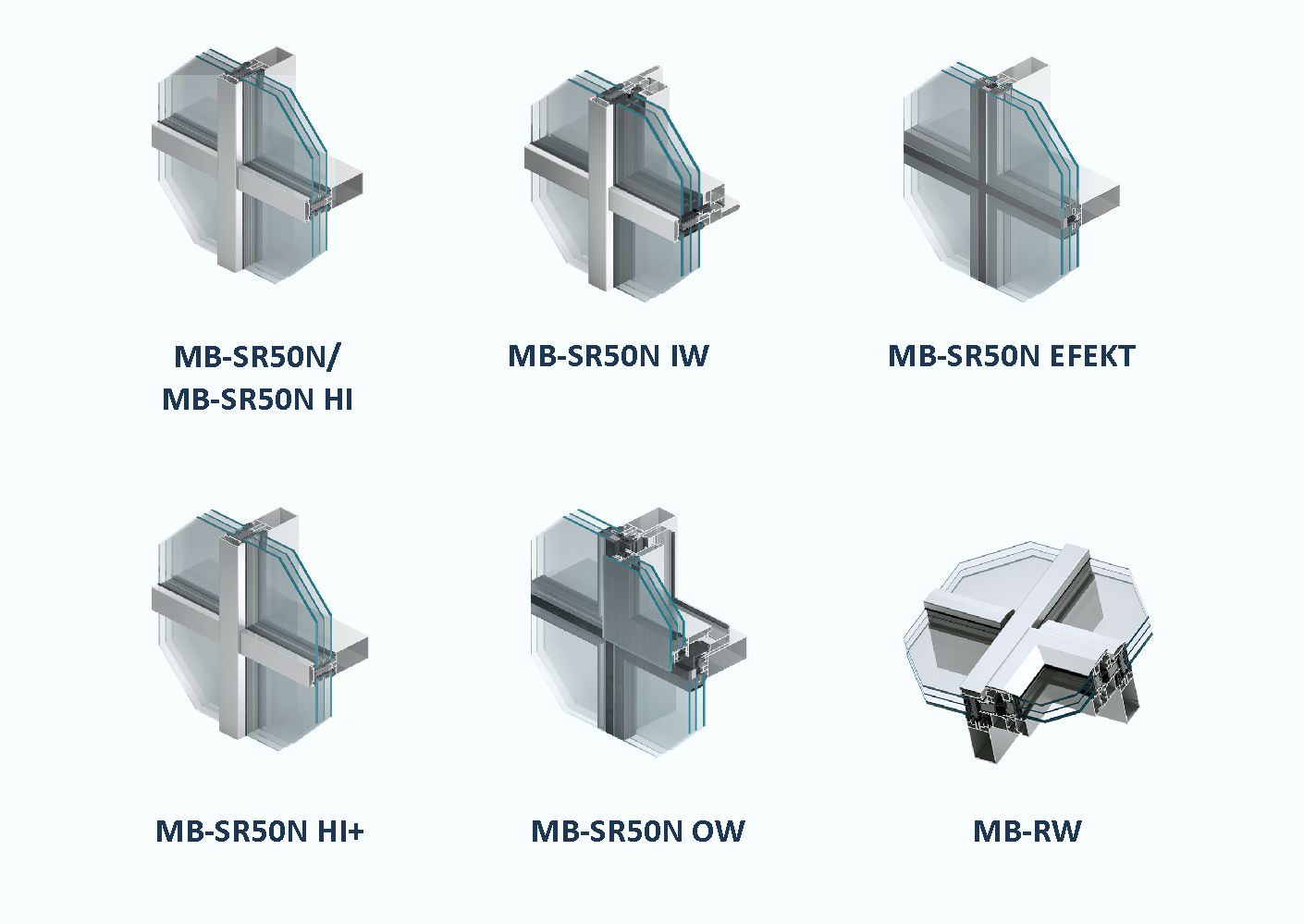

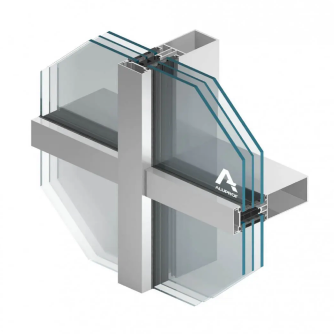

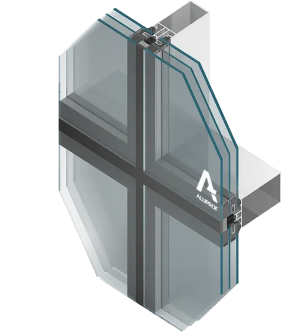

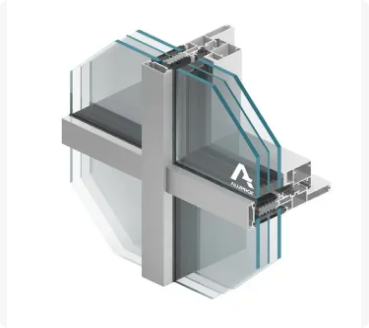

Modifications and
system options

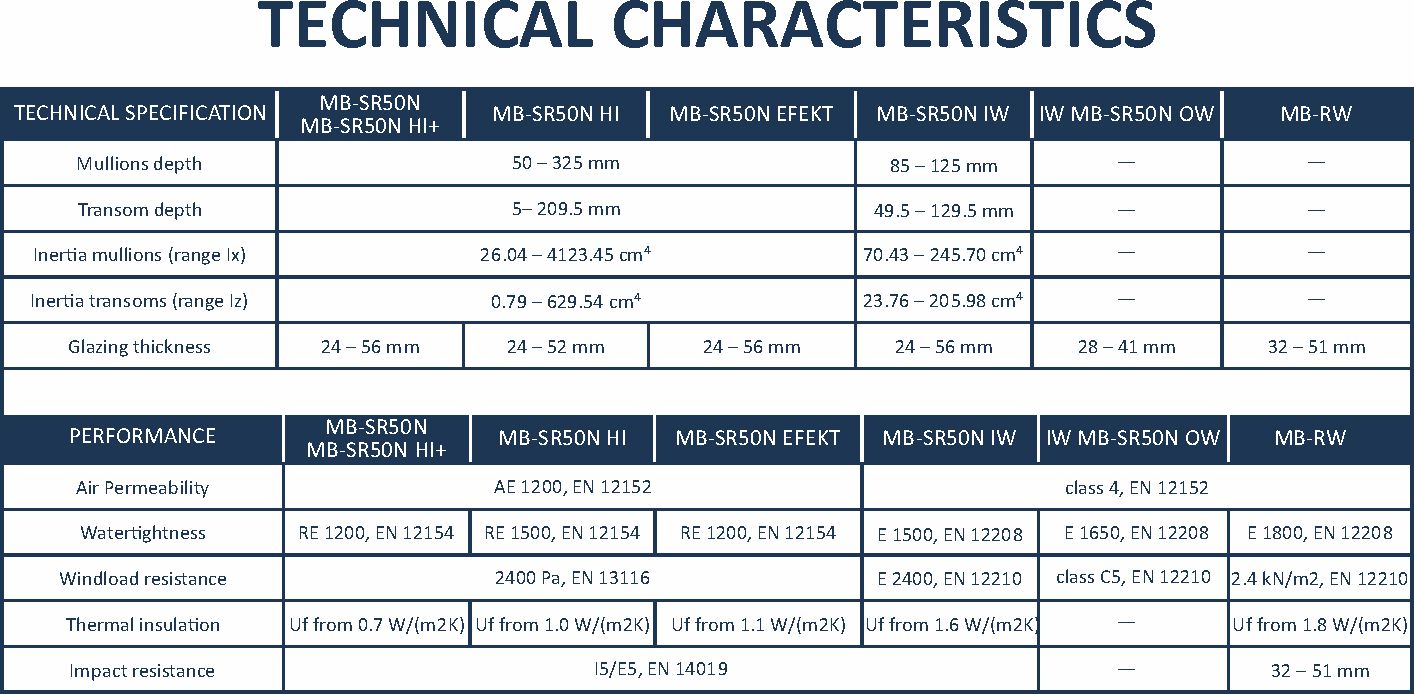

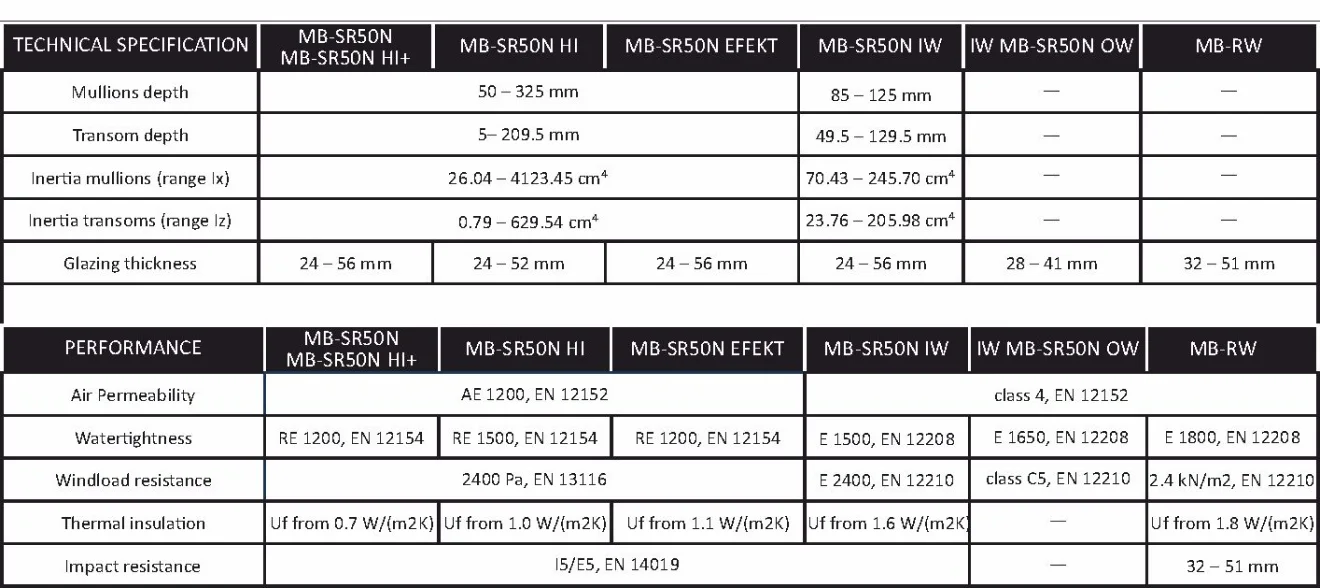

TECHNICAL CHARACTERISTICS
